The Best Way to Label an Audio Patchbay
The best way to label an audio patchbay is to use a dedicated online patchbay configuration tool to design precision-cut, colour-coded vinyl stickers, which completely eliminates the alignment issues of spreadsheet templates and the sticky mess of traditional console tape. Of course we would say that; we sell custom printed patchbay labels after all. Self-promotion aside, anyone who has spent an afternoon squinting at a tiny 96-point TT bantam patchbay knows that bad labelling actively kills your workflow.
Patchbay Labelling Methods: Printed vs. Manual
Choosing how to handle your layout usually comes down to how often you rotate gear and how much patience you have. While slapping down a strip of handwritten console tape is a convenient choice and a quick fix, professional studios rely on printed labels to ensure crisp legibility and exact alignment with the physical jacks.
Physical Material Comparison
Let's look at how the most common labelling materials stack up when subjected to real-world studio conditions, setup effort, and aesthetic appeal.
| Labelling Method | Cost | Hassle / Effort | Legibility & Fit | Appearance | Longevity & Clean Removal |
|---|---|---|---|---|---|
| Professionally Printed Vinyl | Medium |
Low-Moderate Design online; simple peel-and-stick application. |
Excellent (Latex-printed, precision-cut to fit your exact model) | Professional studio finish; perfectly aligned rows designed via your web browser. | Permanent & Residue-Free (Won't fade, smudge, or scratch; peels off cleanly) |
| Laser Paper + Laminate | Low |
High Tedious manual cutting with knives and rulers. |
Good (Dependent on printer resolution) | Functional, but can look untidy. Clear tape yellows over time. | Medium Durability / Moderate Risk (May peel or fray over time; residue depends on tape used) |
| Brother/Dymo Label Maker | Low |
Moderate Peeling and sticking individual micro-strips by hand. |
Fair (Font choices and spacing are restricted) | Industrial or utility look; individual stickers can look misaligned. | High Durability / Moderate Residue Risk (Plastic tape resists peeling but can leave adhesive behind) |
| Handwritten Console Tape | Very Low |
Zero Fast pen-and-tear fix. |
Poor (Hard to read 96-point TT rows) | Cluttered and temporary aesthetic. | Short-Lived / Residue-Free (Ink smudges and low-tack edges curl quickly; lifts easily) |
Patchbay Layout & Visual Organisation
No matter how your studio routing is configured, getting your labels to align perfectly with physical channels requires careful planning and a bit of mathematical precision. Here are a few visual logic rules that make a massive difference to how quickly you can find your connections when you are in the middle of working:
- The Channel Alignment Challenge: Most people naturally start by trying to map out their patchbay in Excel by measuring the width of the patchbay's faceplate, dividing it by the number of channels per row and using one column for each channel. The downside is that it is difficult to get the needed level of accuracy in Excel and your channel markers can easily drift out of alignment by the time you reach the end of the row. You can bypass this hassle with our online tool, which is tested and configured to each specific model, eliminating that drift.

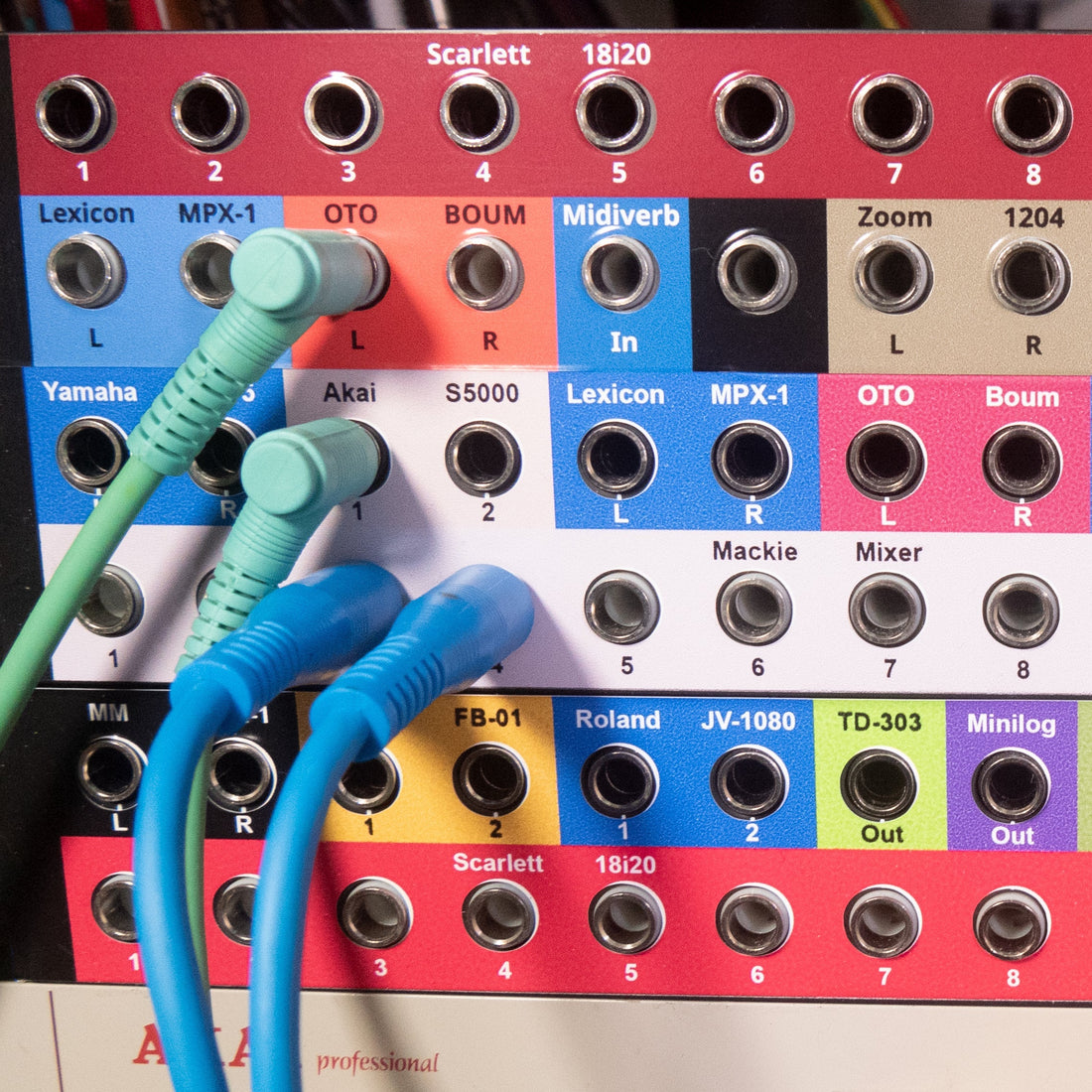

- Functional Grouping & Sub-Labelling: Grouping your channels allows you to spread your text over a wider field, giving you much more space to label. For example, you can create a main heading that spans four channels called "Drums" with individual subheadings beneath it like "Kick", "Snare", and "Hi-Hat". If you are working in Excel, you may run into the alignment problem again if you're making sub-labels for each channel. That's one of the advantages of our online design tool; on 48 point patchbays you can have a sub-heading for each channel and it stays perfectly aligned, even when you have a wide main heading spanning many channels.
- Colour-Code Standardisation: Colour-coding is a great way to see what is happening across your patchbay at a glance. If you group your channels by instrument or signal type, you can use distinctly coloured background blocks for things like your mic preamps versus your interface I/O. It means your eyes can find the right section before you even pick up a patch cable.
- The PatchCAD Alternative: PatchCAD is another excellent way to manage your patchbay layout. It's a well-known industry tool, and we can professionally print directly from your PatchCAD files if you choose to use it. It has a huge variety of patchbay models in its database. However, it typically outputs configurations as narrow text strips. Our full-face labels, which are available for select models, give you a lot more vertical space for bolder colour blocks and much larger font sizes.
Faceplate Prep & Application
Before you stick any new labels down, it's important to clean the patchbay faceplate properly, as dust, grease and fingerprints can prevent adhesive from bonding fully. Wipe the surface carefully with isopropyl alcohol and ensure any old adhesive residue is fully removed. Take extra care to ensure all dust is removed - like applying a screen protector, tiny specks of dust under a vinyl label can cause bubbling. When the isopropyl has dried, apply your new label, smoothing any bubbles towards the edges while keeping everything aligned with the jacks.
